Lamella Settlers

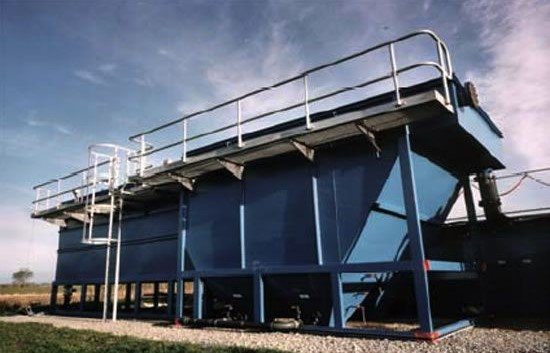

Lamella settlers are compact clarification systems developed to enhance solid–liquid separation where space, flow stability, and operational control are critical. At RTW, lamella settlers are engineered as high-efficiency primary and secondary clarification solutions for industrial wastewater treatment plants requiring consistent performance under variable hydraulic and solids loading conditions.
Lamella settlers supplied by RTW are designed to integrate smoothly within primary treatment and advanced clarification stages while maintaining predictable separation efficiency across fluctuating operating conditions.
Lamella Settler System Overview
Lamella settlers operate on gravity separation principles while significantly increasing effective settling area through inclined plate assemblies. This configuration enables faster clarification within a reduced footprint, making the system suitable for both new installations and plant upgrades.
Compact Clarification Architecture
Lamella settlers utilize closely spaced inclined plates to shorten particle settling distance. This arrangement improves separation efficiency while reducing tank size requirements, allowing installation in facilities where conventional clarifiers are impractical due to space constraints.
Enhanced Settling Surface Area
The inclined plate configuration multiplies the effective settling surface without increasing system volume. This supports higher flow handling capacity while maintaining solids capture efficiency, even when influent characteristics vary during peak operational periods.
Gravity-Based Separation Process
Lamella settlers rely on controlled hydraulic flow and gravity-driven settling. Suspended solids slide along plate surfaces and collect in the sludge zone, while clarified water rises uniformly for discharge to downstream treatment stages.
Structural Design and Configuration Elements
The mechanical and structural integrity of lamella settlers directly influences hydraulic stability, solids separation efficiency, and long-term operational reliability. RTW designs each system based on influent quality, solids loading rate, and site-specific installation conditions.
Inclined Plate Module Design
Plates are arranged at optimized angles to support laminar flow conditions. This configuration minimizes turbulence while encouraging solids migration toward the collection zone, ensuring stable separation performance across a wide operating range.
Tank Geometry and Flow Distribution
Uniform flow distribution is achieved through engineered inlet and outlet arrangements. Proper hydraulic control prevents short-circuiting, uneven plate loading, and localized solids accumulation that could reduce clarification efficiency.
Sludge Collection and Removal Zones
Settled solids are directed into designated sludge hoppers beneath the plate assembly. These zones are sized to accommodate expected solids volumes while supporting controlled sludge withdrawal without disturbing upstream clarification zones.
Material Selection and Corrosion Control
RTW lamella settlers are fabricated using materials selected for chemical compatibility with industrial wastewater. Structural components are designed to withstand corrosive conditions, temperature variation, and prolonged operational exposure.
Operational Stability and Performance Control
Lamella settlers are valued for their consistent clarification performance under dynamic operating conditions. RTW systems are engineered to maintain separation efficiency while minimizing operator intervention and process disruption.
Hydraulic Load Management
System design accounts for flow variation, surge conditions, and solids concentration changes. Stable hydraulic profiles protect plate assemblies from excessive loading and maintain predictable effluent clarity.
Solids Handling Efficiency
Inclined plates encourage continuous solids movement toward the sludge zone, reducing accumulation on plate surfaces. This minimizes fouling risk and supports sustained performance during extended operating cycles.
Process Continuity Support
Lamella settlers operate as continuous clarification units, allowing uninterrupted wastewater treatment without frequent shutdowns. This supports industrial facilities requiring stable treatment output across extended production schedules.
Reduced Footprint Advantage
The compact nature of lamella settlers allows installation in constrained sites, retrofit applications, and modular treatment systems. This advantage supports phased plant expansion and system upgrades without major civil modifications.
Integration Within Treatment Systems
Lamella settlers function as a critical clarification step within broader wastewater treatment frameworks. RTW designs these systems to integrate seamlessly with upstream and downstream processes while supporting long-term treatment objectives.
Primary Treatment Applications
In primary clarification, lamella settlers remove suspended solids and particulate matter following screening and coagulation stages. This reduces downstream loading and enhances the efficiency of biological or advanced treatment units.
Secondary Clarification Support
Lamella settlers are also applied after biological treatment to separate biomass and residual solids. Their compact footprint makes them suitable for upgrading conventional secondary clarifiers facing capacity limitations.
Compatibility With Chemical Conditioning
Lamella settlers perform effectively when paired with chemical coagulation or electrocoagulation systems. Flocculated solids settle rapidly along inclined surfaces, improving overall clarification efficiency.
Downstream Process Protection
By delivering clarified effluent with reduced solids content, lamella settlers protect downstream filtration, membrane, and polishing systems from excessive fouling and hydraulic stress.
Why Industries Choose RTW for Lamella Settlers
Industries select RTW lamella settlers for their engineering reliability, integration flexibility, and performance consistency across demanding wastewater treatment environments.
Proven System Engineering
RTW designs lamella settlers based on real influent data, solids loading rates, and hydraulic conditions rather than generic sizing assumptions.
Space-Efficient Treatment Solutions
RTW lamella settlers deliver high clarification capacity within compact footprints, supporting installations where conventional clarification is not feasible.
Seamless Process Integration
Each system is engineered to operate as part of a complete wastewater treatment solution, not as a standalone unit.
Long-Term Operational Reliability
Structural design, material selection, and flow control features prioritize durability and sustained performance under continuous industrial operation.
Compliance-Oriented Design
RTW lamella settlers support compliance with discharge, reuse, and internal process water quality requirements across industrial sectors.
Reduced Maintenance Burden
System layouts prioritize access, sludge removal efficiency, and inspection simplicity, supporting stable operation with minimal intervention.
Industry-Specific Adaptation
RTW lamella settlers are applied across textiles, chemicals, food processing, pharmaceuticals, and heavy industrial wastewater treatment facilities.
RTW delivers complete lamella settler solutions covering design, manufacturing, installation coordination, and commissioning support. Contact us today!
